VersaJamb®

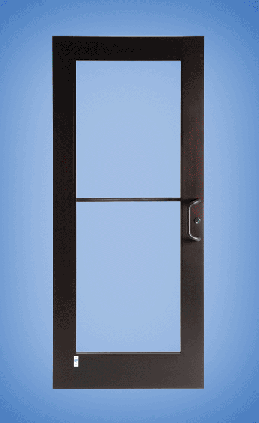

20D Narrow Stile Door
A standard commercial entrance designed for light to medium traffic, 20D offers narrow sightlines.

35D Medium Stile Door
Designed for medium traffic areas, 35D is ideally suited for institutional installations.

50D Wide Stile Door
Designed for medium to high traffic use, 50D is suited for monumental applications.

40D Wide Stile Heavy Duty Door
Engineered for use where extra strength is needed to handle abusive traffic loads such as sports arenas, airports, hospitals, convention centers, and schools.

20DH is a narrow stile swing entrance designed for shuttered applications. This entrance system measures 1-3/4″ thick and fully complies with all the requirements of the South Florida Building Code Protocol PA 202-94.

35DH is a medium stile swing entrance designed for shuttered applications. This entrance system measures 1-3/4″ thick and fully complies with all the requirements of the South Florida Building Code Protocol PA 202-94.

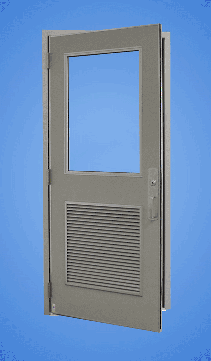

Model 25FD

Available with a durable Fiber Reinforced Polyester resin (FRP) or an Aluminum Skin to meet both aesthetic and performance requirements of any project. Marine Grade high compression honeycomb core material provides superior performance in compression strength. An aluminum skeleton in the form of a 4-1/2″ backup tube with a minimum 1/8″ wall thickness provides the strength necessary to resist abuse and maintain the integrity of the door. This strong skeleton eliminates the need for hardware specific reinforcement. Model 25FD is designed to accept a variety of locking and hinging hardware for security and egress applications.

  • Custom Door Sizes Single Door up to 4′-0″ x 8′-0″ Pair Doors up to 8′-0″ x 8′-0″

  • 1-3/4″ Door Stile will mount easily into YKK AP door frames

  • Locking Hardware options include Rim Panics, Latch Locks, and Maximum Security Locks

  • Doors are available pre-glazed with 1/4″ monolithic or 1″ insulating glass

  • Aluminum louvers are available to meet project requirements

  • FRP panels are standard with a random pebble textured skin

  • Four standard colors are readily available � White, Grey, Dark Bronze, and Beige

  • Exterior Grade FRP skins provide superior resistance to fading

  • Aluminum skins available in Clear and Dark Bronze anodized finishes


Monumental Swing Doors

Features 4″ and 5″ wide stile options and are produced with a typical 3/16″ wall thickness providing exceptional durability making it ideal for use in high traffic areas. VersaJamb®, our unique reinforced tubular door frame, allows for side-lite glazing without shear clips while maintaining the structural integrity of transom frames.

The 40M/50M door includes a removable vertical mullion option for pairs. Door corners are mechanically joined and welded to ensure that they are more than capable of withstanding today’s most demanding conditions. Standard hardware options include the Smart Series ergonomic Push/Pull, Von Duprin® 33, 99, and Dor-O-Matic® touch bar exit devices. Custom entrances are available with options for one inch glazing, mid rails, high bottom rails and will accommodate most custom hardware.

  • Custom Door Sizes Single Door up to 4′-0″ x 8′-0″ Pair Doors up to 8′-0″ x 8′-0″

  • Offset Pivot, Butt Hung Options

  • Maximum Security Lock

  • Concealed Vertical Rod Exit Device (Offset Pivot only)

  • Multiple Depth Bottom & Mid-Rail Options

  • Custom Sizes and Hardware Options Available
